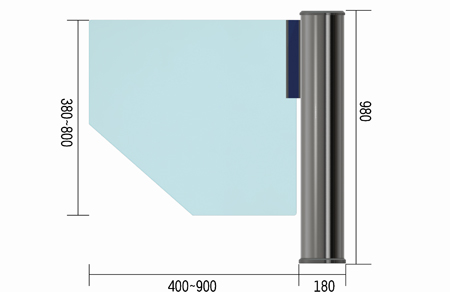

Physical dimension(mm) and Weight(kg)

• Weight: 40kgs(88.185 pounds); gates not included
• Packaging:
  length(1400mm),width(400mm),height(1200mm); gates not included

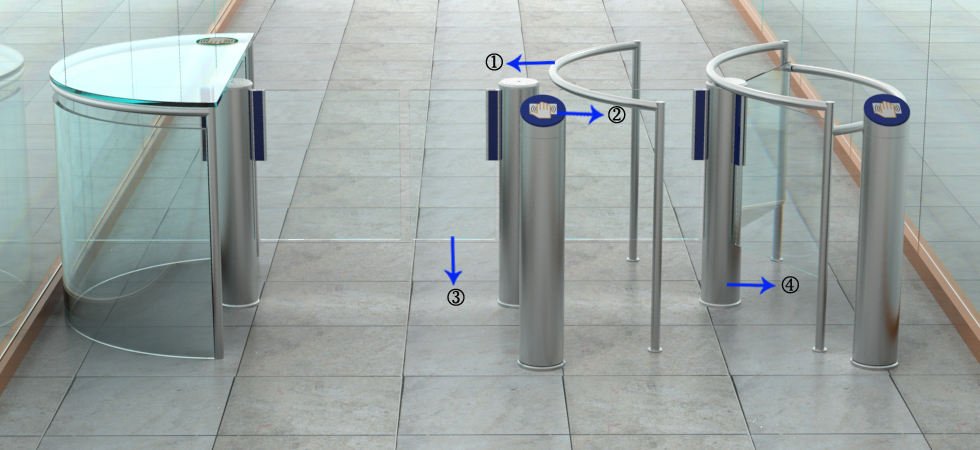

Main materials

• Housing: 2.0mm thick SUS304 Grade Brush stainless steel
• Electromechanical unit: 45# steel with Zinc plated

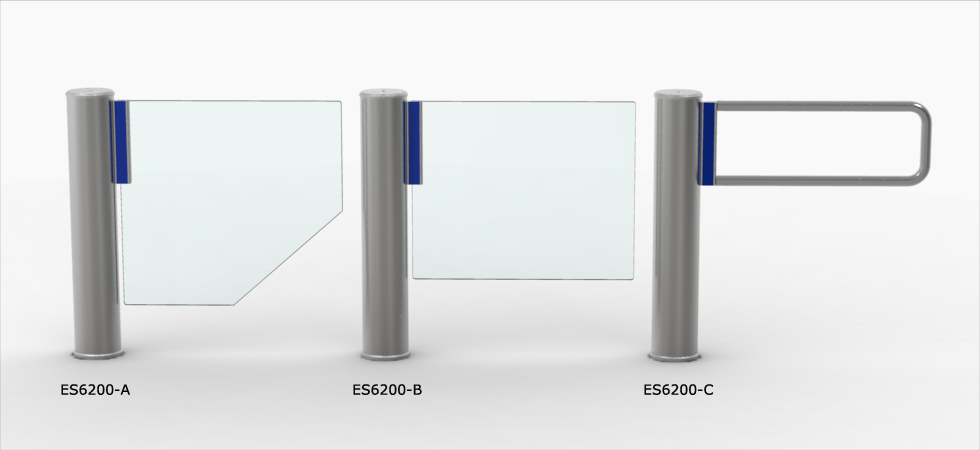

• Gates: PMMA, tempered glass, 1.5mm thick SUS304 stainless steel tube
• Guardrail: standard or customizable

Electromechanical unit performance

• Transmission mode: servo-position drive
• Safe mode: free passage in case of power failure
• Power-assist drive: DC brushless motor
• Gate opening mode: 90° swing in both directions
• Opening/closing time: 0.8~1.8s(adjustable)
• Passage width: customizable
• Gate travel angle: 180°
• Gate dimension: 49~900mm (customizable)
• Noise: ≦52db; gate opening and closing: ≦55db
• Passhrough rate: 30 passages /minute
• Driver life: MCBF(average number of cycles between breakdowns)> 5 million times

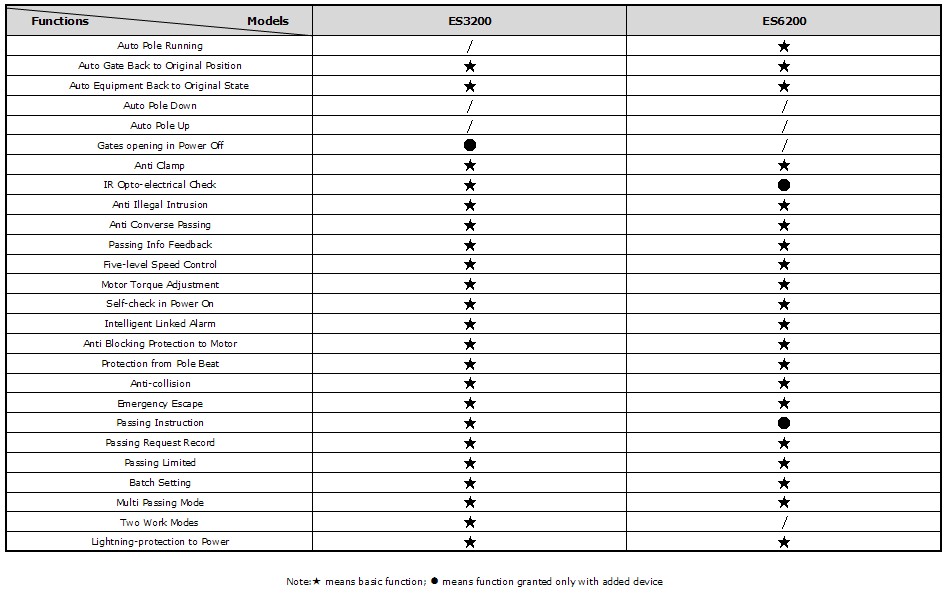

Features

• The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact.

• Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance.
• Anti-trailing: security level 1(See Remarks)
• Passthrough modes: one or both directions(optional); adjustable passthrough rate; optional operation modes.
• Lightning protection and leakage protection
• Protection functions: anti-pinch, anticollision, antistall, over voltage and over current and powersurge
• Preventing and warning the illegal operations
• Standard external electric interface with photoelectric isolation enchance incorporate all kinds of control equipments thus extremely convenient for system integration
• Remote control and setup
• Extended functions: counting, audible and visual alarm, fire alarm and linkage, Photoelectric Beam Detector

Electrical and operating requirements

• Power supply:100V to 240V AC）
• Frequency range:single-phase 50Hz to 60Hz
• Operating voltage:DC 24V
• Current: 300mA in standby condition; 4A(maximum operating current)in working condition
• Operating temperature: -20 to 70°C(-4 to 158°F)
• Storage temperature: -40 to 80°C(-40 to 176°F)
• Relative humidity: 5% to 95%RH

Communication

• Standard RS232 port
• Digital I/O
• Industrial RS485/CAN BUS (optional

Operation interface (user’s choice for expansion)

• Available in the installation environment for control equipments

Installation

• Single-phase power supply 3A 110 to 220V AC+ground(earth)
• Customizable guardrail
• Slab to be drilled on Structural Slab Level and dowelled on Finished Floor Level to secure in position
• Please refer to ES6100 series Installation Drawing

Remarks:
Security level 1: Provide basic anti-trailing system; relatively short equipment; basic level of single passage regulation in both directions;

Security level 2: Provide the best length and structure for anti-trailing identification system; basic level of single passage regulation in

both directions and identification to child and trolley;

Security level 3: This equipment is equipped with mechanical device and sensors to identify bi-direction passage and prevent trailing.                                                          DOWNLOAD
