ES2000

tripod turnstiles, turnstyles,access control gates,barrier

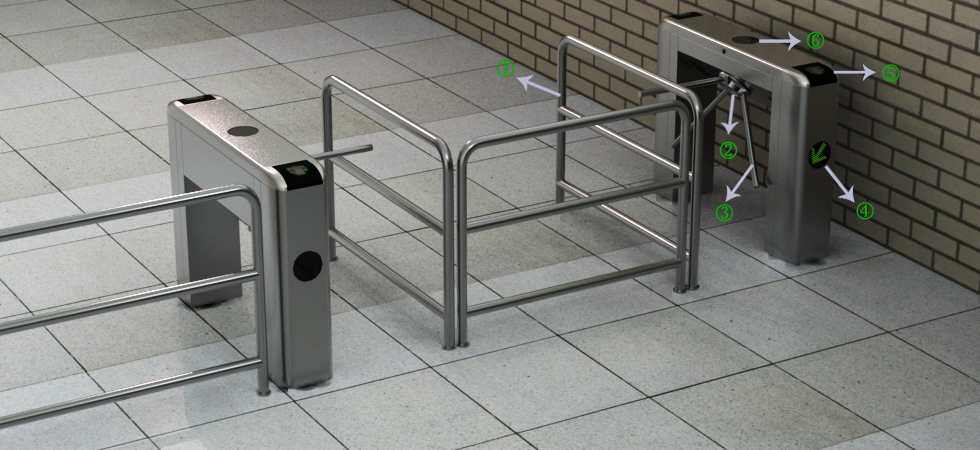

①Guardrail; ②Flange; ③Arm; ④Status LED; ⑤Operation area; ⑥Indicator LED

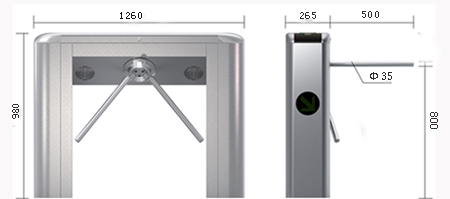

Physical dimension(mm) and Weight(kg)

  • Length: 1260mm (49.606 inches)

  • Width: 265mm (10.433 inches)

  • Height: 980mm (38.583 inches)

  • Weight: 80kg (176.37 pounds)

  • Packaging: length(1400mm),width(400mm),height(1200mm)



Main materials

  • Framework: 2.0mm SUS304 stainless steel

  • Housing: 1.5mm thick SUS304 Grade Brush stainless steel

  • Electromechanical unit: 45# steel with Zinc plated

  • Flange: Cast aluminum with Sand Blasted finishing.

  • Arm: 1.5mm thick SUS304 Grade Brush stainless steel



Electromechanical unit performances



Features

  • Unique DC 24V mechanical bearing locking and multilevel sensor positioning structure provide high security and silent smooth operation.

  • The system is equipped with stepless positioning apparatus and the operation is controlled by sensors without mechanical impact.

  • Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance.

  • Anti-trailing: security level 3 (See Remarks).




Electrical and operating requirements

  • Power supply:100V to 240V AC

  • Frequency range:single-phase 50Hz to 60Hz

    • Operating voltage:DC 24V

    • Current: 300mA in standby condition; 3A(maximum operating current)in working condition

    • Operating temperature: -20 to 70°C(-4 to 158°F)

    • Storage temperature: -40 to 80°C(-40 to 176°F)

    • Relative humidity: 5% to 95%RH



    Communication

    • Standard RS232 port

    • Digital I/O

    • Industrial RS485/CAN BUS (optional)



    Operation instructions(user’s choice)

    Orientation pictogram

                 Status LED                                           Indicator LED


    Operation interface (user’s choice for expansion )

    • Available in the installation environment for card reader

    • Available in the installation environment for LED or LCD monitor

    • Available in the installation environment for other user control equipments



    Installation

    • Single-phase power supply 3A 110V to 220V AC+ground(earth)

    • Connecting electrical wiring to the control equipments

    • Slab to be drilled on Structural Slab Level and dowelled on Finished Floor

    • Level to secure in position

    • Please refer to ES2000 Installation Drawing








    Remarks:
    Security level 1: Provide basic anti-trailing system; relatively short equipment; basic level of single passage regulation in both directions;

    Security level 2: Provide the best length and structure for anti-trailing identification system; basic level of single passage regulation in

    both directions and identification to child and trolley;

    Security level 3: This equipment is equipped with mechanical device and sensors to identify bi-direction passage and prevent trailing.                                                          DOWNLOAD


    Function Comparison Table

    What is Tripod Turnstiles

    • Tripod Turnstiles is an access control equipments used for entrance & exit control.
    • There are two kinds of Tripod Turnstiles in the market: one is Mechanical Tripod Turnstiles made by cam structure and industrial hydraulic principle; the other one is Electric Tripod Turnstiles combining with motor, clutch and digital encoder.
    • For Mechanical Tripod Turnstiles, it works through external force from user. The leading producers for this simple designed and durable equipment are Gunnebo from Sweden and Automatic System from Belgium.
    • For Electric Tripod Turnstiles, it is more humanized. The leading producer for this elaborately designed and easily used equipment is Kaba from Germany.

    How to select Tripod Turnstiles

    • From product itself, there are several important criterions:
    • A.Lifetime;
      B.Craftwork and materials;
      C.Type of electromechanical unit (mechanical or electric);
      D.Protective functions;
      E.Communication functions.

    • From product use, users who have physical discomfort or excess baggage should be considered. It is better that tripod turnstiles and barrier-free access are put to use together.

    • From working environment, equipments must withstand effect of natural environment, even extreme weather.

    Why Essence

    • Essence has been involved in development and manufacture of access control equipment for 15 years. Its excellent technology and rich experience provides high-quality products.
    • Essence's tripod turnstiles are well designed with normal structure to provide humanized service.
    • The unique bearing locking can accurately control the operation of equipment.
    • 5 million tests without failures and 5 years successful application prove Essence’s Electromagnetic Unit has superior performance.
    • Essence' s products are tested in many severe environments, such as areas in 38℃ below zero and 60℃ above zero, the humid coastal areas, the arid deserts etc.
