ES6100

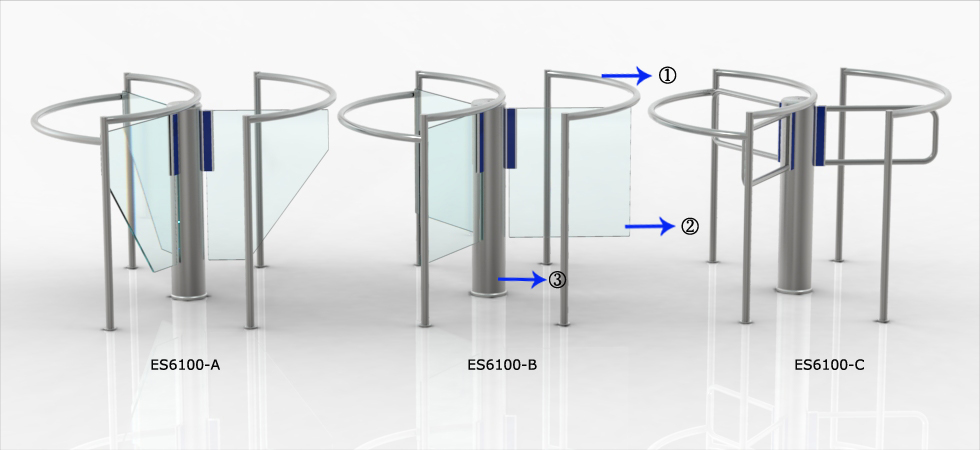

①Guardrail; ②Gate; ③Electromechanical unit





 half-height,waist height,optical turnstiles,access control

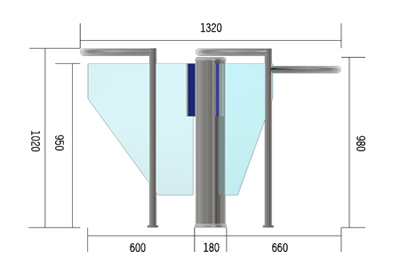

Physical dimension(mm) and Weight(kg)

  • Weight: 40kg(88.185 pounds); gates not included
  • Packaging:
    length(1400mm),width(400mm),height(1200mm); gates not included



Main materials

  • Housing: 2.0mm thick SUS304 Grade Brush stainless steel
  • Electromechanical unit: 45# steel with Zinc plated
  • Gates: PMMA, tempered glass, 1.5mm thick SUS304 stainless steel tube
  • Guardrail: standard or customizable



Electromechanical unit performance

  • Transmission mode: servo-position drive
  • Safe mode: free passage in case of power failure
  • Power-assist drive: DC brushless motor
  • Gate opening mode: 120° swing in both directions
  • Opening/closing time: 0.8~1.5s(adjustable)
  • Passage width: 520-600mm
  • Gate travel angle: 120°
  • Gate dimension: 500~580mm (customizable)
  • Noise: ≦52db; gate opening and closing: ≦55db
  • Passhrough rate: 35 passages /minute
  • Driver life: MCBF(average number of cycles between breakdowns)> 5 million times



Features

  • The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact.




  • Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance.Anti-trailing: security level 1(See Remarks)
  • Passthrough modes: one or both directions(optional); adjustable passthrough rate; optional operation modes.
  • Lightning protection and leakage protection
  • Protection functions: anti-pinch, anticollision, antistall, over voltage and over current and powersurge
  • Preventing and warning the illegal operations
  • Standard external electric interface with photoelectric isolation enchance incorporate all kinds of control equipments thus extremely convenient for system integration
  • Remote control and setup
  • Extended functions: counting, audible and visual alarm, fire alarm and linkage, Photoelectric Beam Detector



Electrical and operating requirements

  • Power supply:100V to 240V AC
  • Frequency range:single-phase 50Hz to 60Hz
  • Operating voltage:DC 24V
  • Current: 300mA in standby condition; 4A(maximum operating current)in working condition
  • Operating temperature: -20 to 70°C(-4 to 158°F)
  • Storage temperature: -40 to 80°C(-40 to 176°F)
  • Relative humidity: 5% to 95%RH



Communication

  • Standard RS232 port
  • Digital I/O
  • Industrial RS485/CAN BUS (optional



Operation interface (user’s choice for expansion)

  • Available in the installation environment for control equipments



Installation

  • Single-phase power supply 3A 110 to 220V AC+ground(earth)
  • Customizable guardrail
  • Slab to be drilled on Structural Slab Level and dowelled on Finished Floor Level to secure in position
  • Please refer to ES6100 series Installation Drawing












Remarks:
Security level 1: Provide basic anti-trailing system; relatively short equipment; basic level of single passage regulation in both directions;

Security level 2: Provide the best length and structure for anti-trailing identification system; basic level of single passage regulation in

both directions and identification to child and trolley;

Security level 3: This equipment is equipped with mechanical device and sensors to identify bi-direction passage and prevent trailing.                                                        DOWNLOAD


Function Comparison Table
Secure, practical and exquisitely
designed Tripod Turnstiles
tripod turnstiles
The latest Speed Gates: only 0.4 second
for gates opening & closing
speed gates
The latest Swing Gates: only 0.4 second
for gates opening & closing
swing gates

What is Tripod Turnstiles

  • Tripod Turnstiles is an access control equipments used for entrance & exit control.
  • There are two kinds of Tripod Turnstiles in the market: one is Mechanical Tripod Turnstiles made by cam structure and industrial hydraulic principle; the other one is Electric Tripod Turnstiles combining with motor, clutch and digital encoder.
  • For Mechanical Tripod Turnstiles, it works through external force from user. The leading producers for this simple designed and durable equipment are Gunnebo from Sweden and Automatic System from Belgium.
  • For Electric Tripod Turnstiles, it is more humanized. The leading producer for this elaborately designed and easily used equipment is Kaba from Germany.

How to select Tripod Turnstiles

  • From product itself, there are several important criterions:
  • A.Lifetime;
    B.Craftwork and materials;
    C.Type of electromechanical unit (mechanical or electric);
    D.Protective functions;
    E.Communication functions.

  • From product use, users who have physical discomfort or excess baggage should be considered. It is better that tripod turnstiles and barrier-free access are put to use together.

  • From working environment, equipments must withstand effect of natural environment, even extreme weather.

Why Essence

  • Essence has been involved in development and manufacture of access control equipment for 15 years. Its excellent technology and rich experience provides high-quality products.
  • Essence's tripod turnstiles are well designed with normal structure to provide humanized service.
  • The unique bearing locking can accurately control the operation of equipment.
  • 5 million tests without failures and 5 years successful application prove Essence’s Electromagnetic Unit has superior performance.
  • Essence' s products are tested in many severe environments, such as areas in 38℃ below zero and 60℃ above zero, the humid coastal areas, the arid deserts etc.
